DY-RX04 Current and Voltage Tester
◇ Product Introduction ◇ Product Features◇ Technical Indicator
[Product Introduction]
DY-RX04 current and voltage calibrator/secondary instrument calibrator is a set of explicit DC voltage, current signal source, DC current function in one of the high precision, high resolution, high reliability of hand-held calibration instrument.
Meter adopts large LCD, clear reading, while the meter also has backlight, reading hold function and automatic shutdown function. The meter can be supplied by DC or AC power, which is more convenient to use.
[Product Features]
1. Super protection function: waterproof level IP67, any signal end misconnect 220V automatic protection;
2. Measurement/output: voltage, current, frequency, millivolt, in which the current output support active, passive;
3. Can simulate two-wire transmitter;
4. Accuracy is 0.02%/ 0.05%;
5. Can provide manual step, automatic step, 0 ~ 100% step and slope output function;
6. With white LED backlight, manual backlight adjustment and automatic power off function, suitable for field use;
7. Provide DC24V loop power supply for on-site debugging;
8. Battery box cover, easy to replace;
[List of Output and Measurement Functions]
| Function | Measurement | Output | Remarks |
| DC voltage | 0~30V | 0~10V | |
| DC millivolt | 0~100mV | 0~100mV | |
| DC current | 0~24mA | 0~24mA | |
| Frequency | 1.000Hz~99.999kHz | 0.00Hz~20.000kHz | |
| Other | 24V power supply, step output, slope output, step output | ||

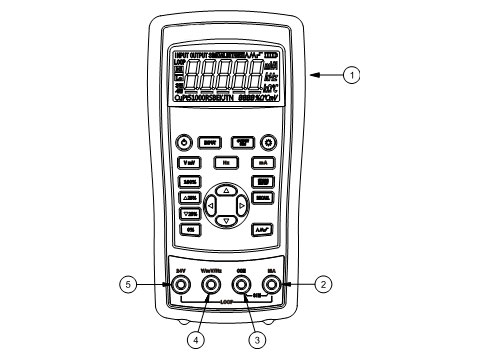

| No. | Name | Description |
| 1 | Charging and communication interface | Connect the power adapter to charge the battery or connect the calibrator to the computer |
| 2 | Current Jack | Common terminal for current measurement and output |
| 3 | COM Jack | Common terminal for all measurements and outputs |
| 4 | V, mV, Hz Jack | Voltage, millivolt, frequency measurement and output terminals |
| 5 | 24V Socket | 24V power supply terminal operating in LOOP mode |
