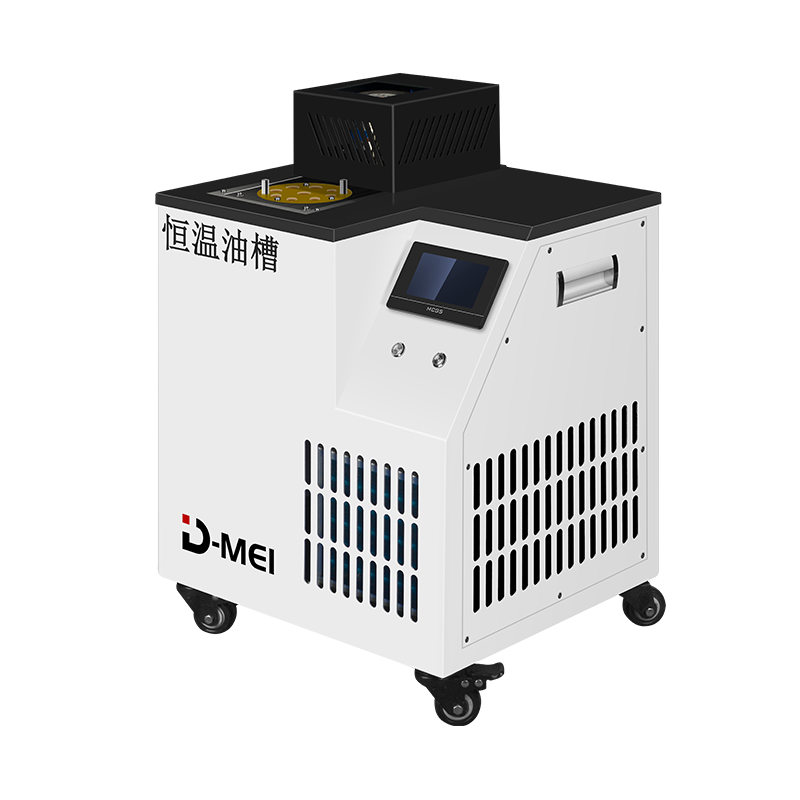

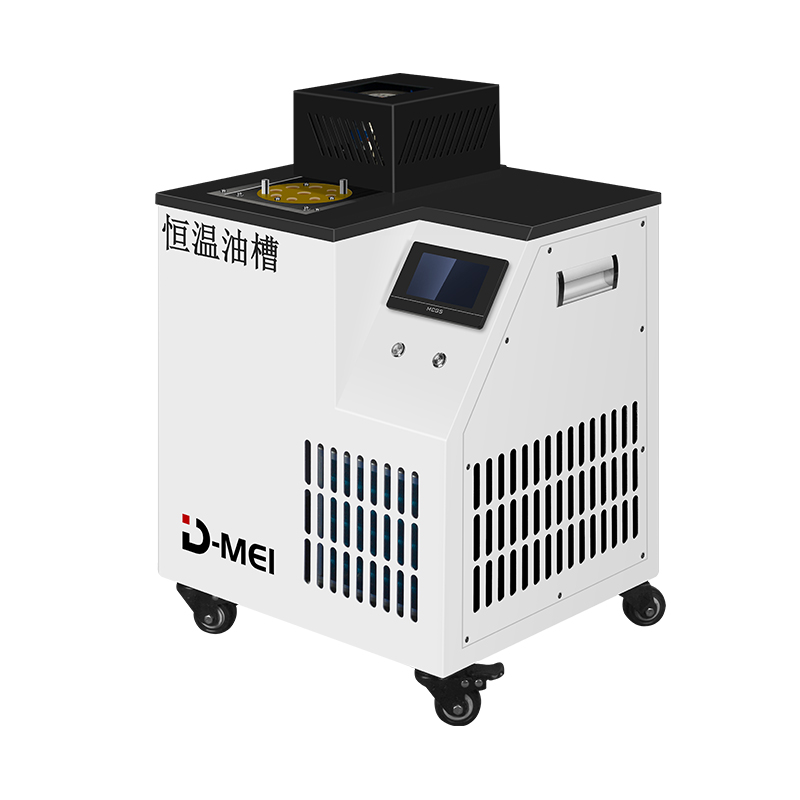

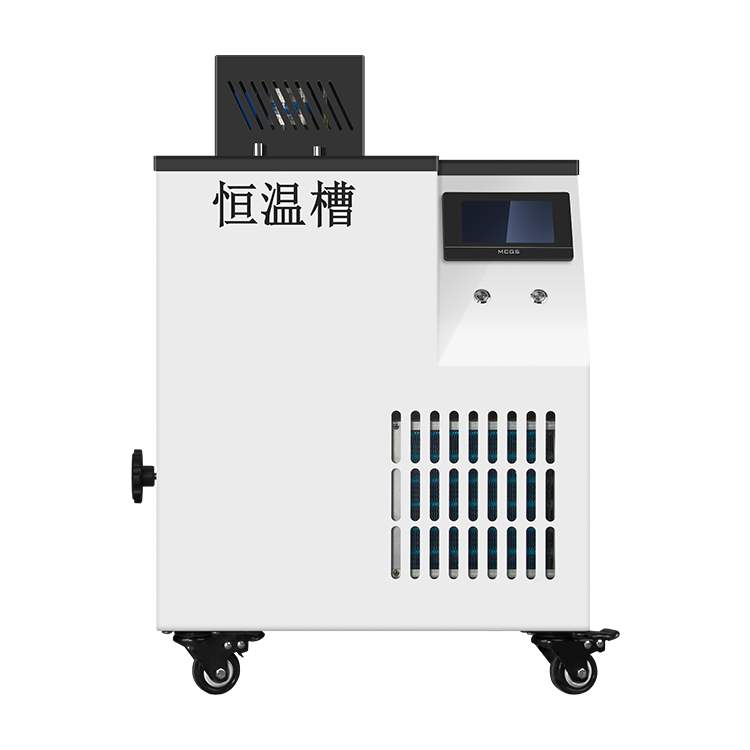

DY-HTS300 Precision Thermostatic Oil Bath(90℃～300℃)
◇ Product Introduction ◇ Product Features◇ Technical Indicator
[Product Introduction]
DY-HTS300 precision constant temperature oil tank (90℃ ~ 300℃) is a high-precision automatic temperature verification equipment, with high temperature control accuracy, uniform temperature field, good stability and easy operation.
The inner liner and outer shell are made of stainless steel. Products for metering department for the first, second - class standard mercury thermometer, Beckman thermometer.
Industrial platinum thermal resistor, standard copper - constantan thermocouple test, also can be used as a high precision heat source for production, scientific research.
[Technical indicators]
| Product Name | Thermostatic Oil Bath |
| Model | DY-HTS300 |
| Range of Working Temperature(℃) | 90～300 |
| Temperature Fluctuations(℃/10min) | ±0.01 |
| Temperature Uniformity(℃) | Horizontal temperature field ≤0.01℃; Vertical temperature field ≤0.01℃ |
| Transient Time(min) | ≤10 |
| Working Area(mm) | Ф150×480 |
| Volume(L) | 23 |
| Working Medium | 201# Methyl silicone oil |
| Ambient Temperature(℃) | Lower than 35 |
| Total Power(kw) | 3 kw |
| Power Supply(v/50hz) | 220V |
| Dimensions(mm) | 750×550×1100 |
| Outer shell material of the inner bladder | Stainless steel hairline plate |
| Weight(KG) | 100 |
| Previous:DY-HT3F-D Split portable high temperature short cavity blackbody furnace | Next:DY-HT3F-D Split portable high temperature short cavity blackbody furnace |
